Import Drain and Catchment

Users are now able to import drainage networks and catchment directly from ACAD.

Import Drain  #

To import drain from ACAD, click ‘Import Drains’ and select the layer that represents your drain network and click ‘Import’.

Import Drain with ‘Z-values’  #

Starting in MiTS 2.6.x.x, when importing drain, users are now able to import the ‘Z-values’ as well.

Note: z-values imported is the drain invert level (IL)

If the intention to iterate the drain invert level (IL), user may click ‘iterate IL’

Import Catchment  #

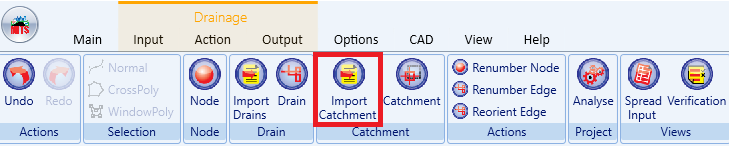

To import drain from ACAD, click ‘Import Catchment’ and select the layer that represents your catchment and click ‘Import’.
