- Step 1: Determine Inflow Hydrograph based on Stage-Discharge and Stage-Storage Graph
- Step 2: Determine Routing Time Period (t)
- Step 3: Develop ‘storage indicator numbers’ table
- Step 4: Plot Storage Indicator Number Graph
- Step 5:Plot Supplementary Curve of Storage Graph
- Step 6: Develop Routing Table
- Step 7 : Plot Outflow Hydrograph
Reference:
- MSMA 2nd Edition; Chapter 2; 2.5 Hydrological Routing
- MSMA 2nd Edition; Chapter 7 – Detention Pond

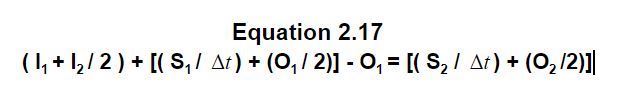

How to perform routing through a reservoir or storage facility using Equation 2.17
![](https://i0.wp.com/mes100.com/wp-content/uploads/2020/12/Capture.jpg?resize=622%2C103&ssl=1)
Step 1: Determine Inflow Hydrograph based on Stage-Discharge and Stage-Storage Graph #
Develop:
i. Inflow hydrograph
- Rational Method refer Chapter 2; 2.3.2 Rational Hydrograph Method)
- Time Area Method refer Chapter 2; 2.3.3 Time Area Hydrograph Method)
- Refer Chapter 7; 7.5.2 Stage Storage Curves Development
iii. Stage-storage curve
- Refer Chapter 7; 7.5.3 Stage Discharge Curves
For the proposed facility (pond)
Step 2: Determine Routing Time Period (t) #
Select a routing time period (t); and provide a minimum of five (5) points on the rising limb of the inflow hydrograph
Step 3: Develop ‘storage indicator numbers’ table #
Develop ‘storage indicator numbers’ table from ‘stage-discharge curve’ & ‘stage-storage curve’
Typical storage indicator numbers table contains the following column headings;
![](https://i0.wp.com/mes100.com/wp-content/uploads/2020/12/image3-1.png?resize=767%2C108&ssl=1)
Notes;
- Discharge (O) and stage (S) – obtained from stage-discharge & stage-storage curves
- Subscript 2 is arbitrarily assigned in the table
- Time interval t must be the same interval used in the tabulated inflow hydrograph
Step 4: Plot Storage Indicator Number Graph #

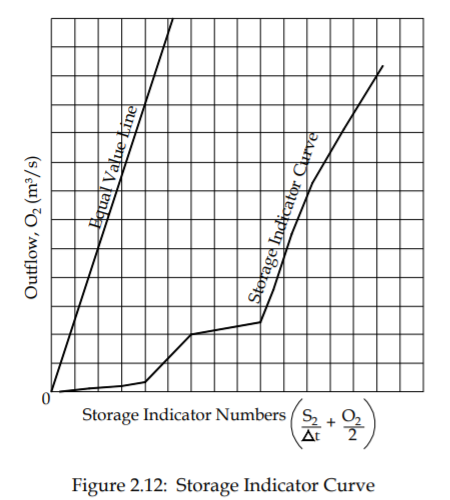

Storage indicator number curves are plotted by:
the outflow (column 2) vertically against the storage indicator numbers in column 6.
![](https://i0.wp.com/mes100.com/wp-content/uploads/2020/12/image12.png?resize=450%2C500&ssl=1)
Step 5:Plot Supplementary Curve of Storage Graph #
Supplementary curve of storage: Column 3 vs Column 6 (S2 /t + O2 /2)
*refer figure 2.12 above.
Purpose: useful for identifying storage for any given value of S2 /t + O2 /2.
Step 6: Develop Routing Table #
Now routing can be performed by developing a routing table for the solution of Equation 2.17 as follows:
![](https://i0.wp.com/mes100.com/wp-content/uploads/2020/12/image6-1.png?resize=776%2C96&ssl=1)

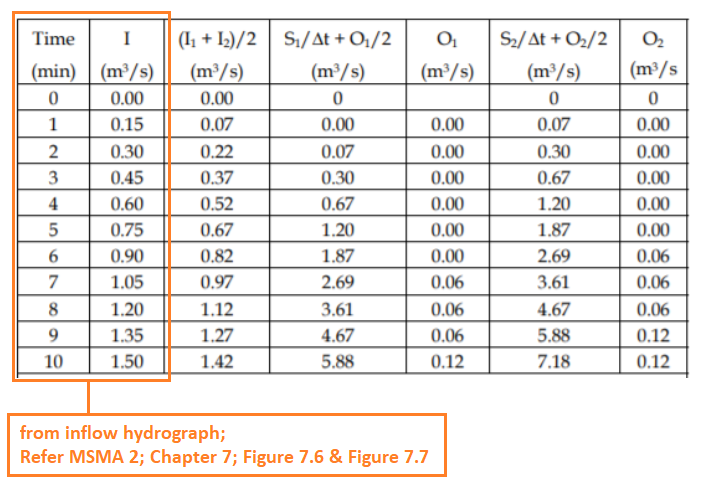

Column 1 & 2
![](https://i0.wp.com/mes100.com/wp-content/uploads/2020/12/image2-1.png?resize=704%2C499&ssl=1)
Note:
To calculate Inflow (Column 2); user can used equation 2.3; Q = CiA / 360
Column 3
![](https://i0.wp.com/mes100.com/wp-content/uploads/2020/12/image10-1.png?resize=687%2C443&ssl=1)

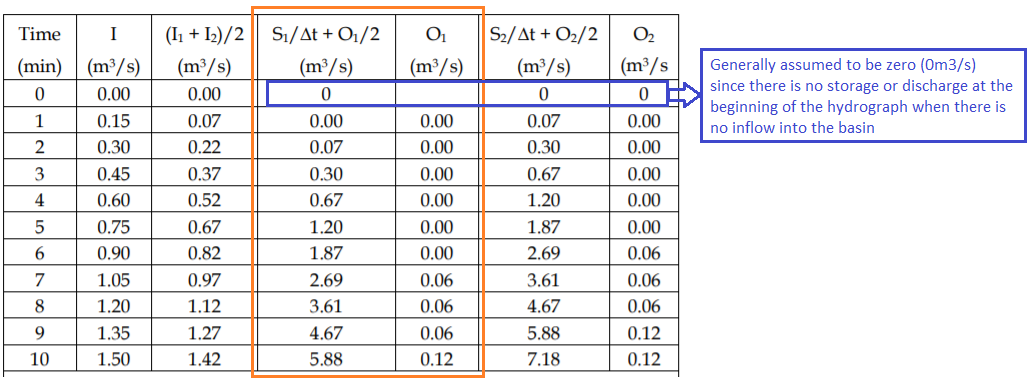

Column 4,5,6 & 7 (at time 0min)
![](https://i0.wp.com/mes100.com/wp-content/uploads/2020/12/image5-1.png?resize=1035%2C383&ssl=1)
Column 6

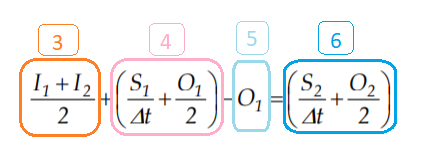

Referring to Equation 2.17;
- From equation 2.17; the left side of equation is determined algebraically as columns (3) + (4) – (5). And this value equals the right side of the equation and is placed in column (6)
![](https://i0.wp.com/mes100.com/wp-content/uploads/2020/12/image13.png?resize=425%2C166&ssl=1)
Note:
- Discharge (O) and storage (S) are obtained from the stage-discharge and stage-storage curves respectively
- Time interval (t) must be the same as the time interval used in the tabulated inflow hydrograph
Column 7
Enter the storage indicator curve with S2 / t + O2 / 2 (column 6) to obtain O2 (column 7)

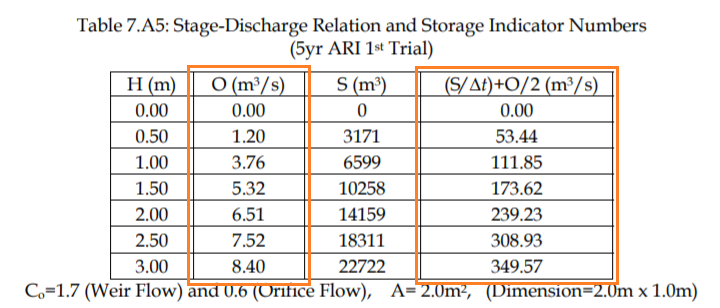

Used Stage-Discharge Relation and Storage Indicator Numbers table to calculate O2
![](https://i0.wp.com/mes100.com/wp-content/uploads/2020/12/image11-1.png?resize=720%2C308&ssl=1)
For example;
take t = 9min ; S2 / t + O2 / 2 = 5.88 m3/s

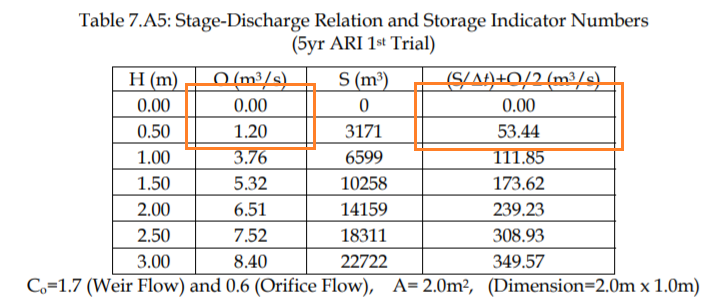

So interpolate;
![](https://i0.wp.com/mes100.com/wp-content/uploads/2020/12/image4-1.png?resize=723%2C306&ssl=1)
Hence the O2 at t= 9min is 0.12 m3/s
(refer image below for reference)
![](https://i0.wp.com/mes100.com/wp-content/uploads/2020/12/image8-1.png?resize=756%2C398&ssl=1)
Next is how to proceed the pond routing?

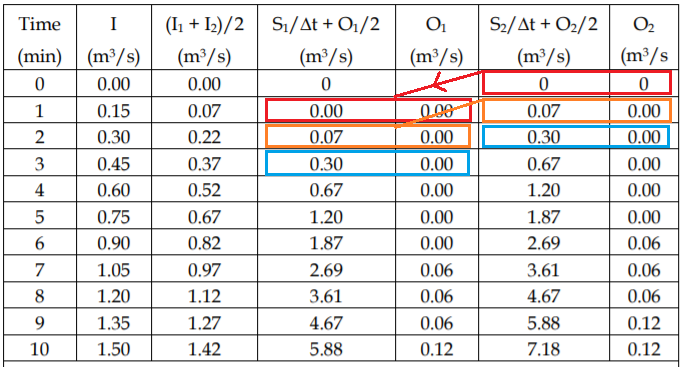

Column 6 (S2 / t + O2 / 2) and Column 7 (O2 ) are transported to the next line and become the Column 4 (S1 / t + O1 / 2) and Column 5 (O1 ) respectively;
![](https://i0.wp.com/mes100.com/wp-content/uploads/2020/12/image7-1.png?resize=787%2C369&ssl=1)
![](https://i0.wp.com/mes100.com/wp-content/uploads/2020/12/image9-1.png?resize=683%2C369&ssl=1)
Notes:
- Peak storage depth and discharge (O2 in Column (7) will occur when Column (6) reaches maximum.
- The storage indicator numbers table developed in Step 3 is entered with the maximum value of S2 / t + O2 / 2 to obtain the maximum amount of storage required. The table also can be used to determine the corresponding elevation of the depth of stored water.
- Designer needs to make sure that the peak flow in Column (7) does not exceed the allowable discharge as prescribed by the stormwater management criteria.
Step 7 : Plot Outflow Hydrograph #
Plot outflow hydrograph; O2 Column (7) vs time Column (1)
