Selection Tab

In every module except MSMA in the ‘Input’ windows, there is a Selection Tab

  • Normal – will select the one entity at the one time
  • CrossPoly – will select every entity that at least partially inside the defined polygon
  • WindowPoly – will select every entity that is fully included inside the defined polygon

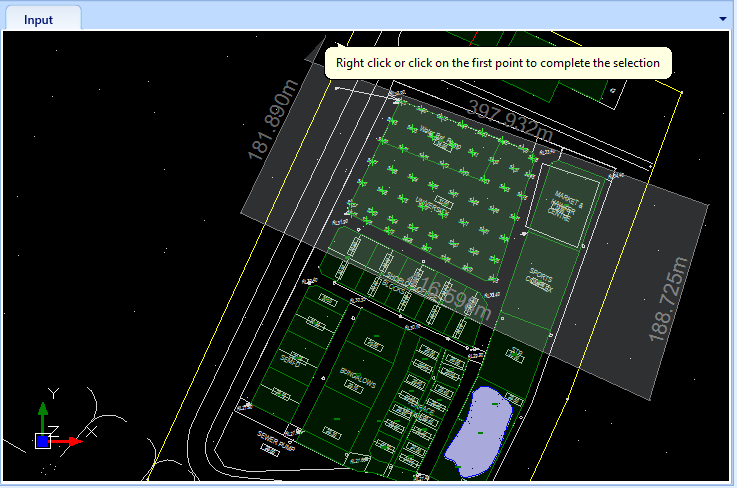

    For example, if the user chooses the entity as shown below;

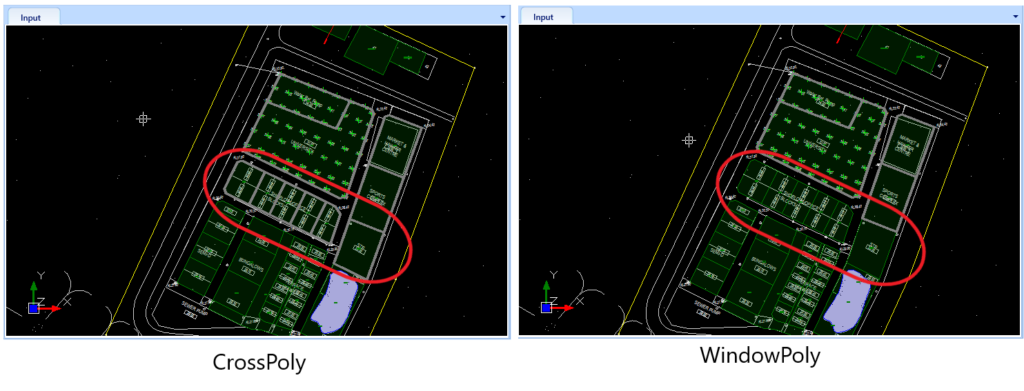

    The outcome of the selected entity is as follows;

    For CrossPoly selection method
    For WindowPoly selection method
