Composite Drain Benchmark

Composite drains are manufactured using different materials, hence the roughness coefficient of each of the materials will be different. Therefore, the n is modified according to Horton-Einstein equation

Horton-Einstein equation is as below:

$$ {(\frac{\mathrm P1{({\mathrm n}_{\mathrm{culvert}})}^{1.5}\;+\;\mathrm P2{({\mathrm n}_{\mathrm{culvert}})}^{1.5}\;+\;\dots.}{{\mathrm{Total}}_{\mathrm P}})}^\frac23\; $$

We carried out examples to benchmark the calculation with MiTS by using different coefficient with different types of drains. We also provide the project file and the spreadsheet of calculation for users to understand better.

1) Box Drain

The project file can be referred as per link.

The n used in the project is as below:

Left side = 0.03

Bottom side = 0.02

Right side = 0.03

The perimeter, cross sectional area, velocity, peak discharge and other relevant calculations including the composite n can be referred to in the benchmark spreadsheet provided.

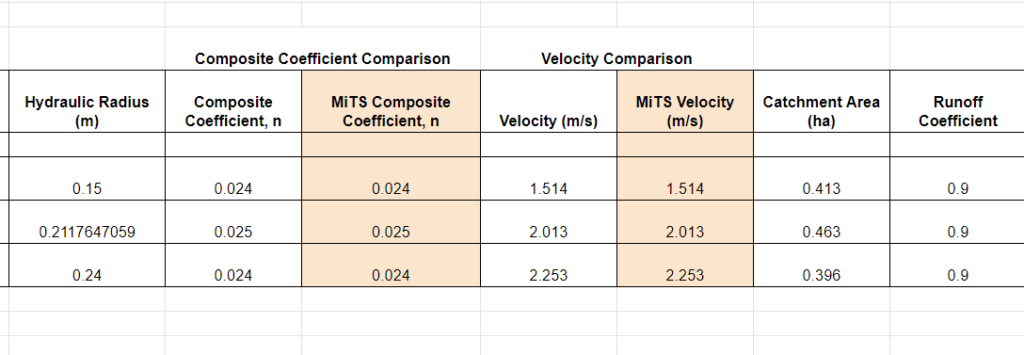

Comparison between manual calculation and MiTS of Box Drain

2) V Shape Drain

The n used in the project is as below:

Left side = 0.03

Bottom side = 0.02

The project file and the benchmark are provided for your reference.

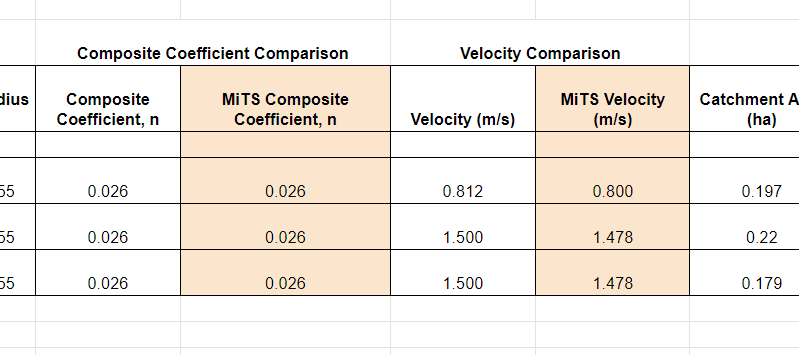

Comparison between manual calculation and MiTS of V Shape Drain

3) Half Round Drain

n used in the project is as below:

Left Side n = 0.03

Bottom n = 0.02

Right Side n = 0.03

Bottom Curve n = 0.02

Project File and benchmark spreadsheet is as per link.

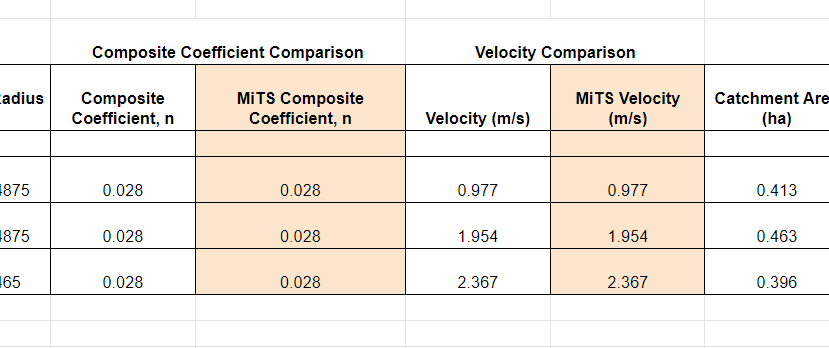

Comparison between manual calculation and MiTS of Half Round Drain

4) Trapezoidal Drain

n used for composite trapezoidal drain is as below:

Left Side n = 0.03

Bottom Side n = 0.02

Right Side n = 0.03

The benchmarking is carried out based on the project file.

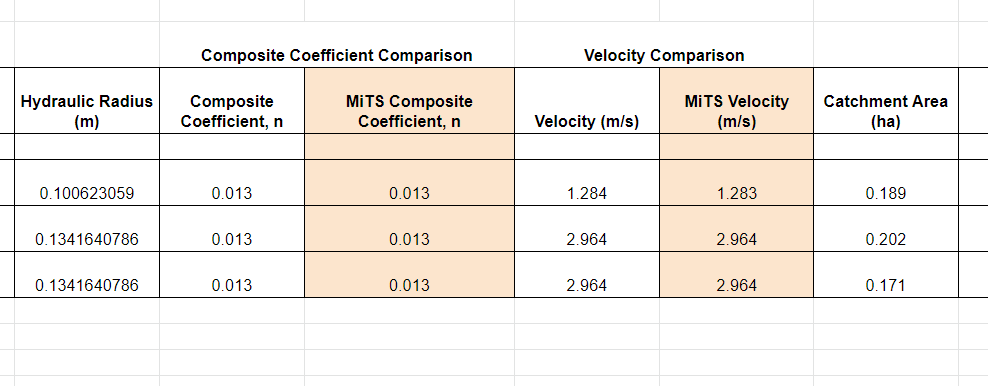

Comparison between manual calculation and MiTS of Trapezoidal Drain

5) Block Drain

n used in the composite block drain is as below:

Left Side n = 0.03

Bottom Side n = 0.02

Right Side n = 0.03

Bottom Curve n = 0.02

The benchmarking is carried out based on the project file.

Comparison between manual calculation and MiTS of Block Drain

6) UDrain

n used in the composite Udrain is as below:

Left Side n = 0.03

Bottom Side n = 0.02

Right Side n = 0.03

You can obtain the project file and the benchmark as per link.

Comparison between manual calculation and MiTS of Udrain Drain

7) UDrain DWF

n used in the composite UDrain DWF is as below:

Left Side n = 0.03

Bottom Side n = 0.02

Right Side n = 0.03

You can refer to the benchmarking and the project file for your perusal.
