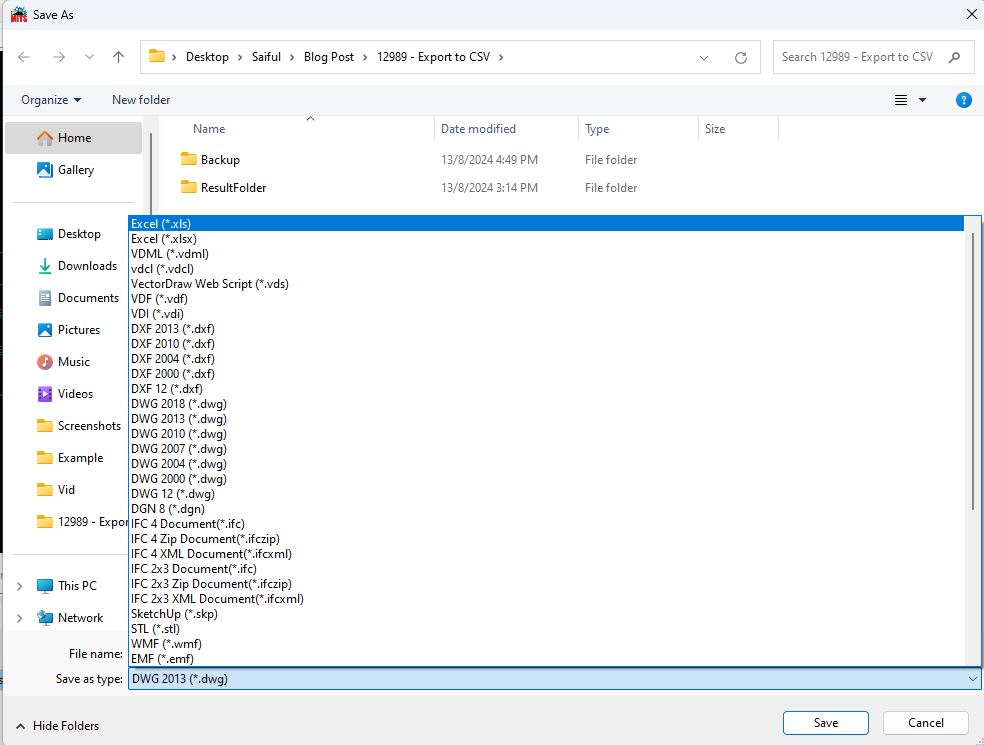

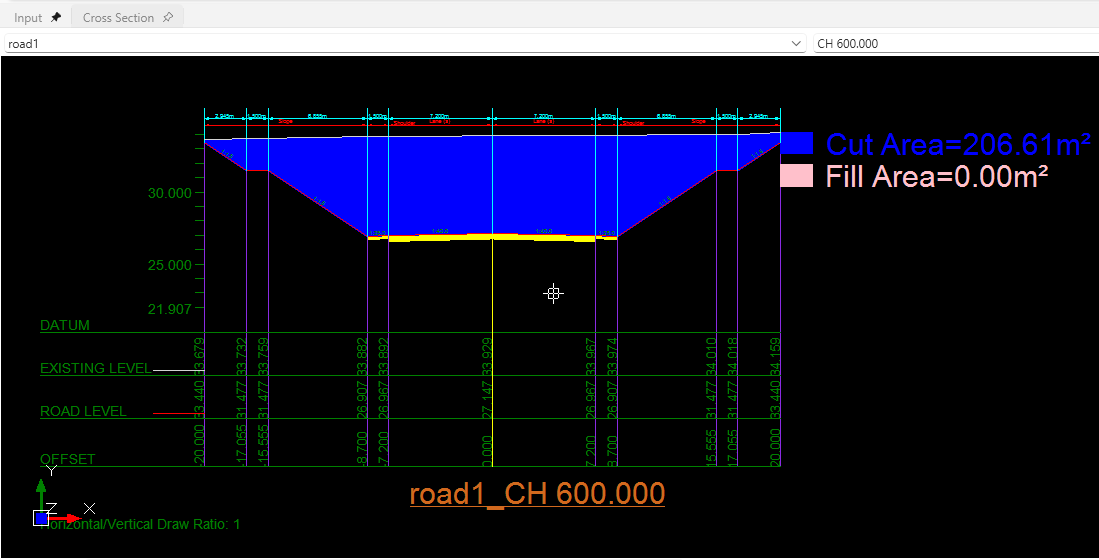

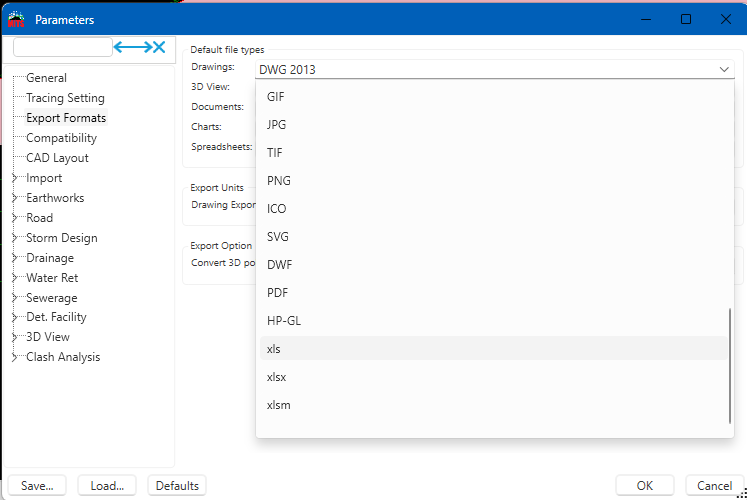

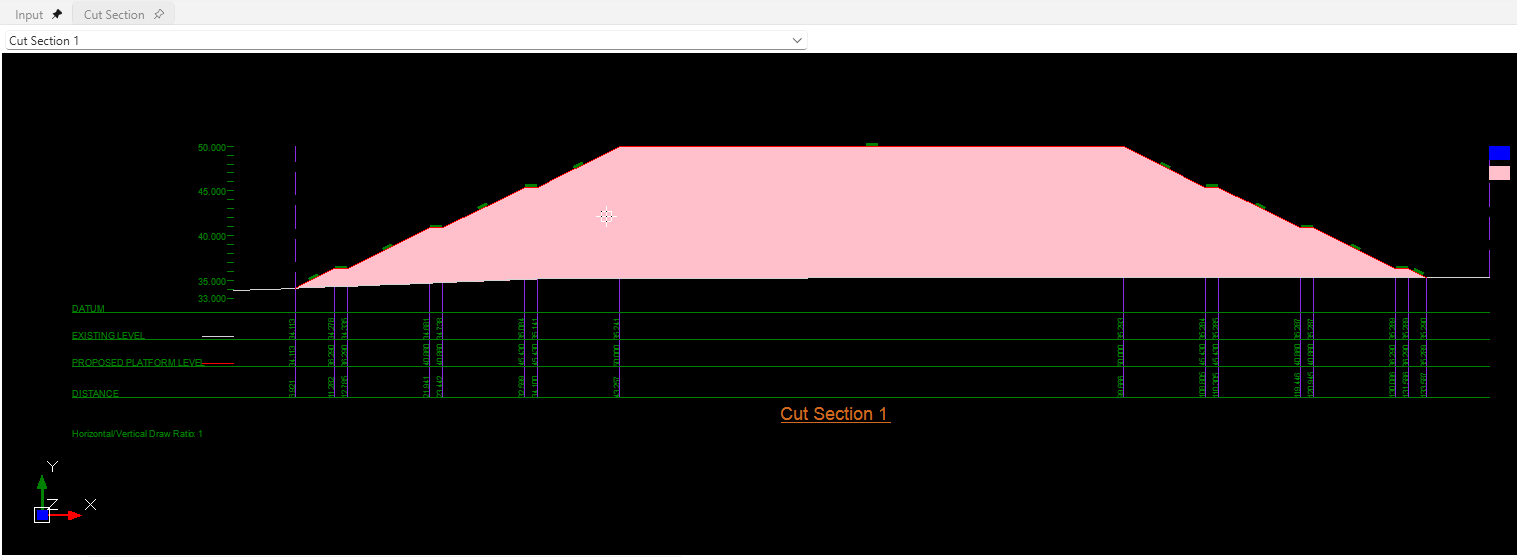

In MiTS 3, users can now export the Cut Section and Cross Section drawings to an Excel file. The data exported is the Cut/Cross Section table. To export Cut/Cross Section drawing to an Excel file, users can set the export drawing file type in the Options > Project Settings > Export Formats > Drawings == xls/xlsx/xlsm or change the file type when exporting the drawing.

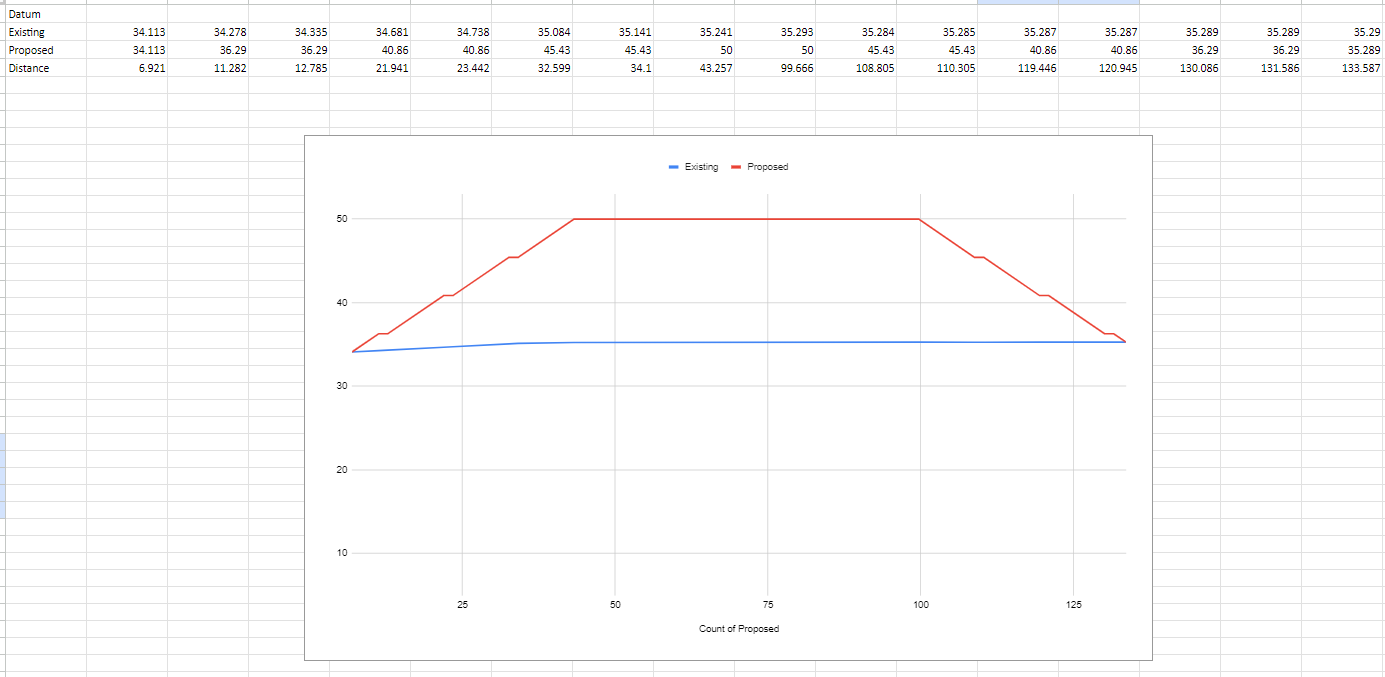

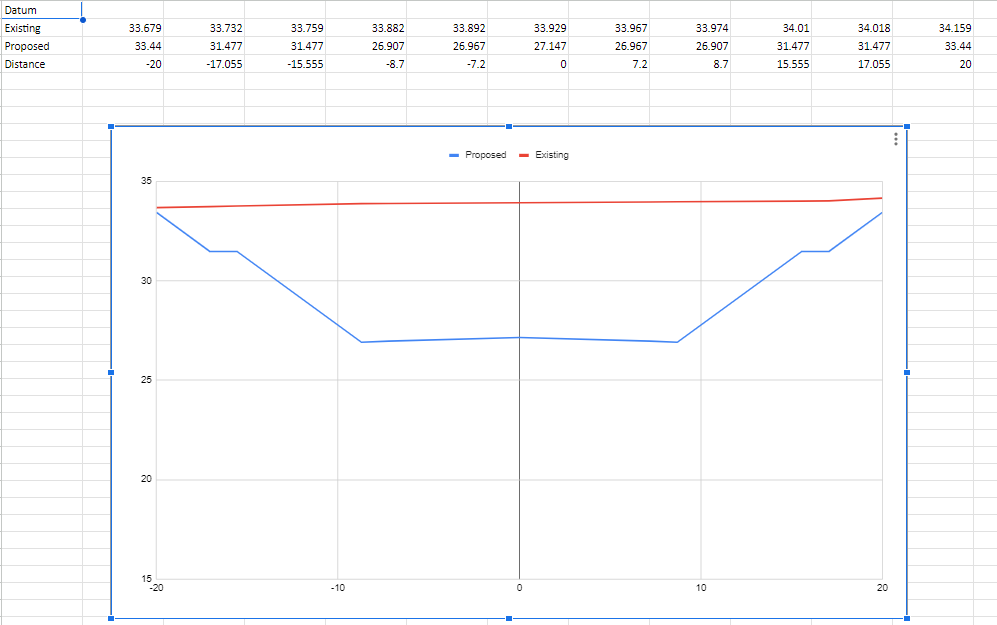

The drawing can be fully reproduced in Excel using the line graph.
Example Project File HERE
Example Spreadsheet HERE
