How To Solve Issue on Full Berm at the Top Part of the Slope In MiTS 2 (Reorder Slope Function)

Full berm can be generated from the bottom by using the Reorder Slope function to create an Effective Platform (essentially platform within platform). Unlike the previous versions (MiTS 1 or EW3D module), users need some modeling using this workaround (HERE).

Issue #

Full berm is located at the upper part of the slope

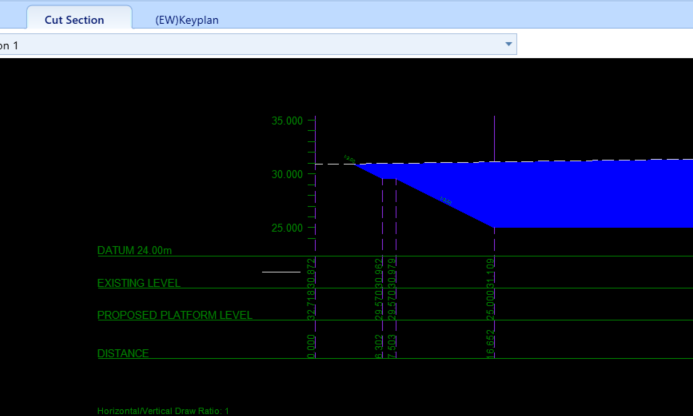

Full Berm at the Top Part

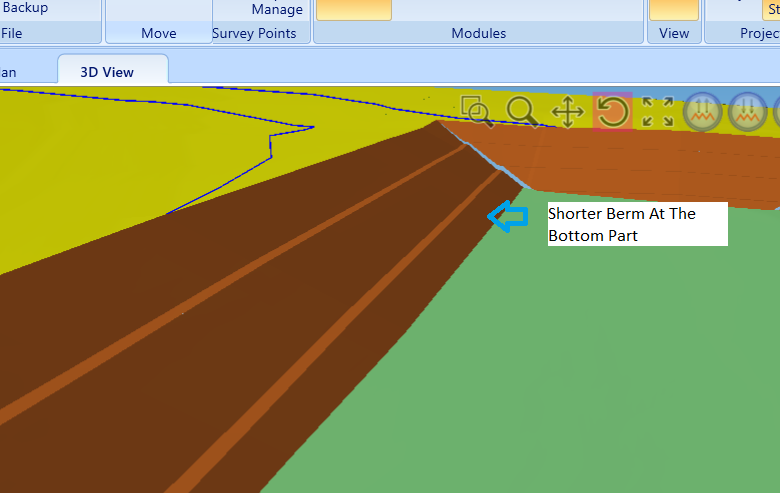

Shorter berm located at the bottom part in 3D

What users expect is as below, where the full berm is located at the bottom part:

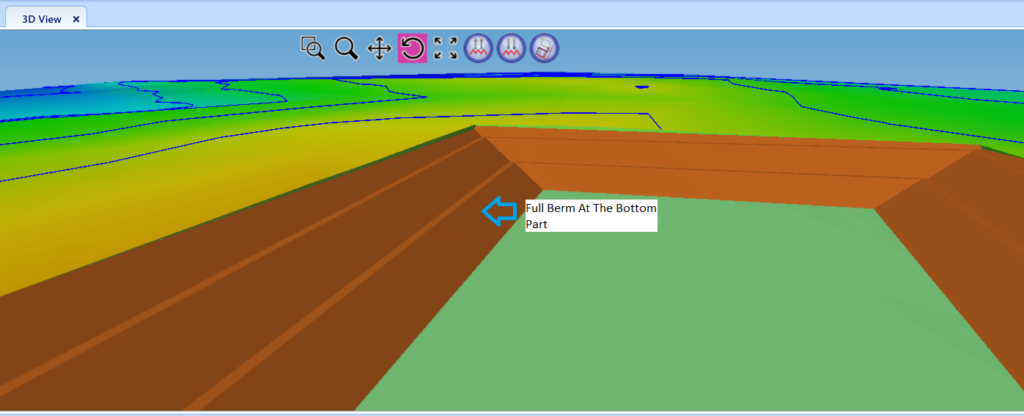

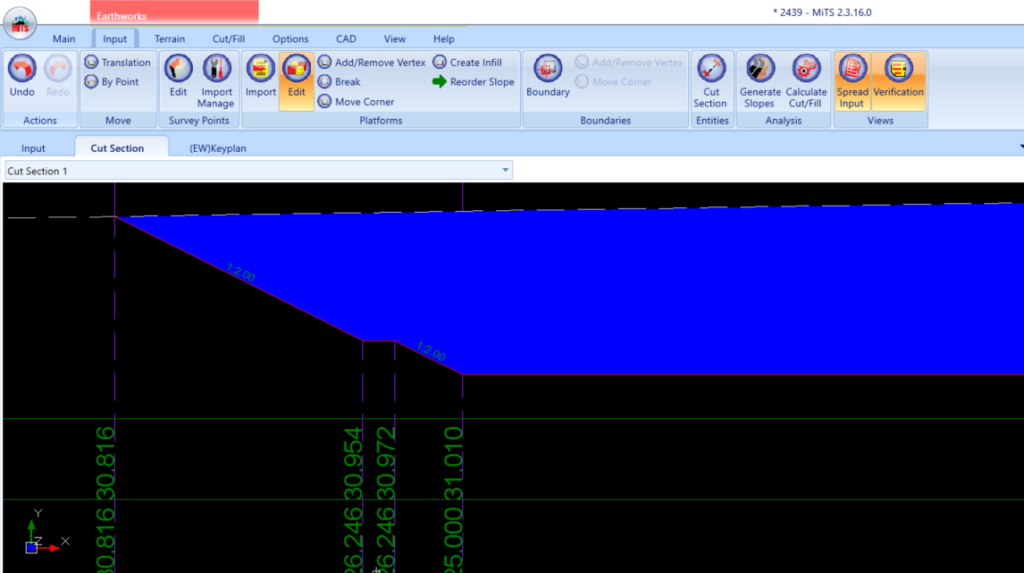

Full Berm is located at the bottom part
Full Berm located at the bottom part

You can use this project file (Project file

Steps to use Reorder Slope #

Slope In #

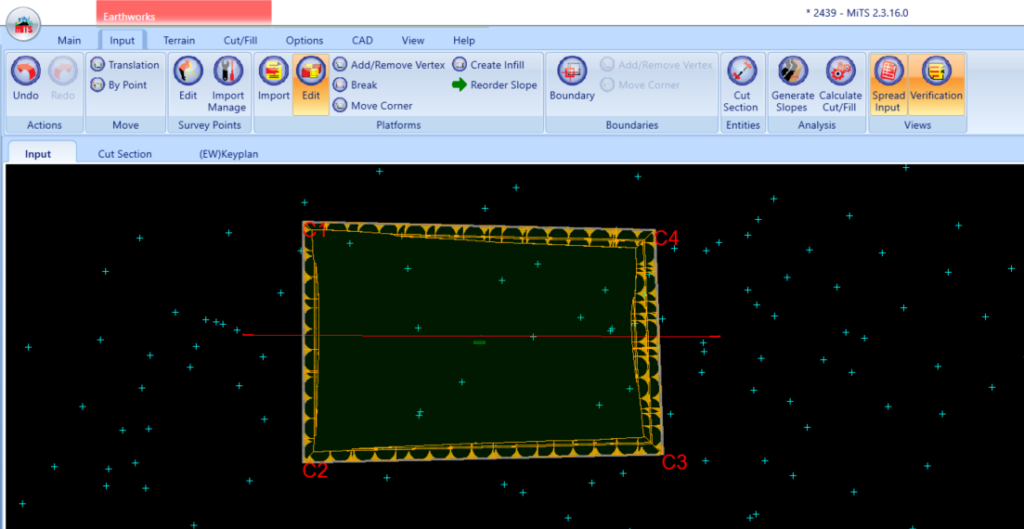

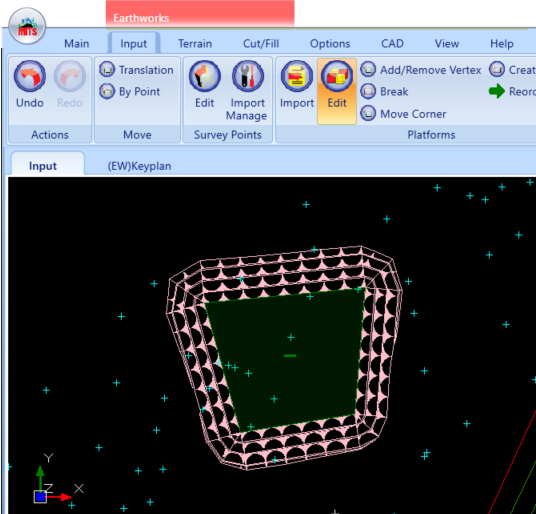

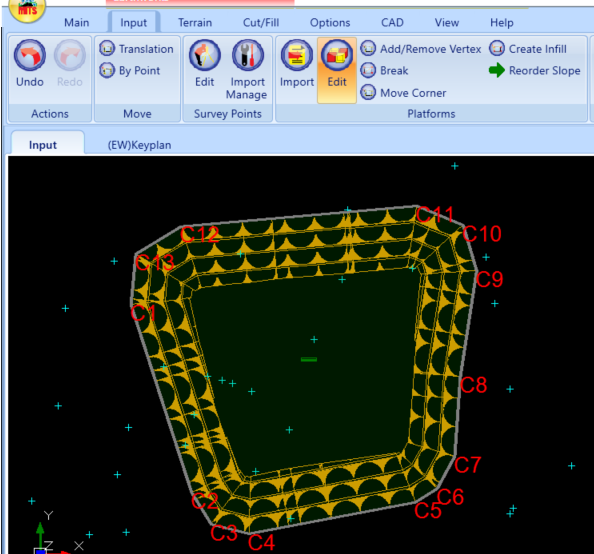

1. The slope is as per the image below after SLOPE IN. The “Reorder Slope” can only be applied to Slope In. For Slope Out, you may refer to the end of this article (SLOPE OUT section)

Note: Now in the latest MiTS 2 version, a previous slope feature is implemented to ease the modeling process;

‘Previous Slope feature is now available in MiTS 2’

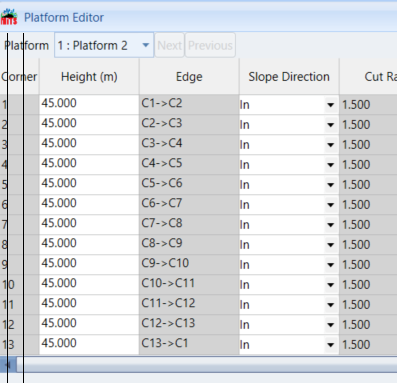

Slope is in the inward direction

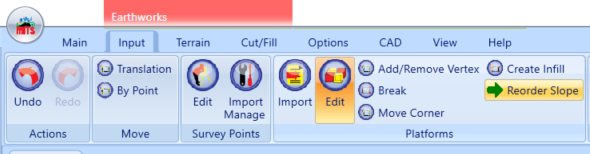

2. To create an Effective Platform, click on “Reorder Slope”

Click “Reorder Slope”

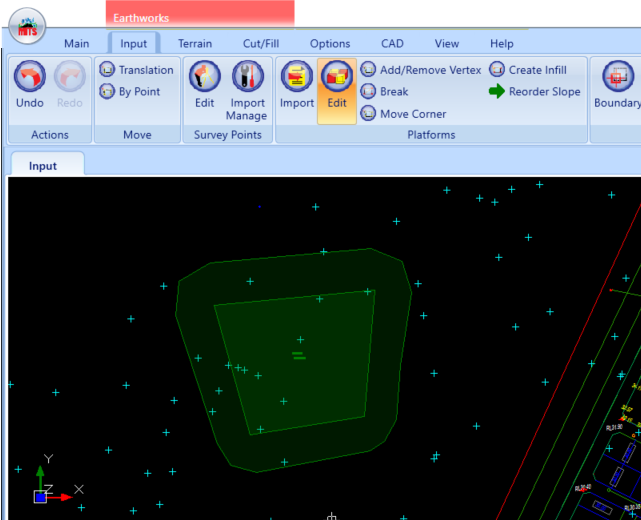

3. Then draw an effective slope (essentially platform within platform

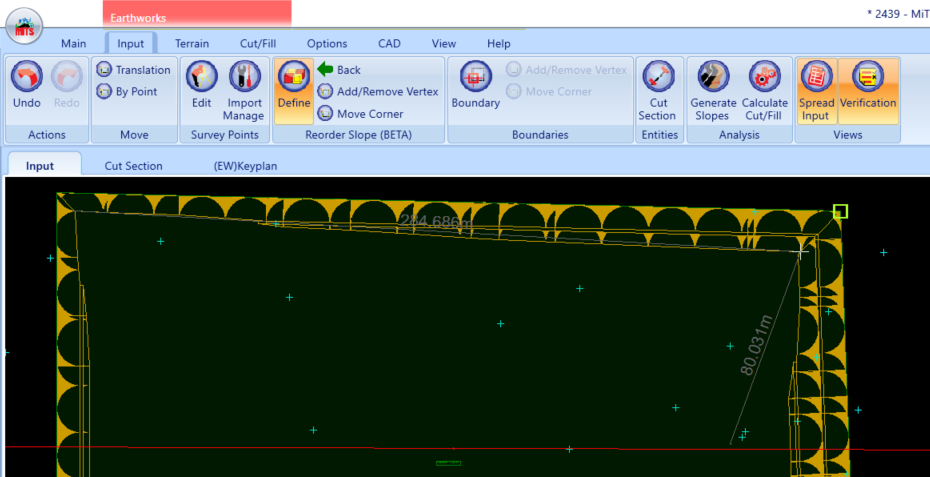

Define the effective slope inside the platform, following the slope shape

4. The platform later will be generated as the image below

5. Click on “Generate Slope” again to generate a new slope. The full Berm is swapped to be at the bottom part.

Newly created slope
Full berm is located at the bottom part

Slope Out #

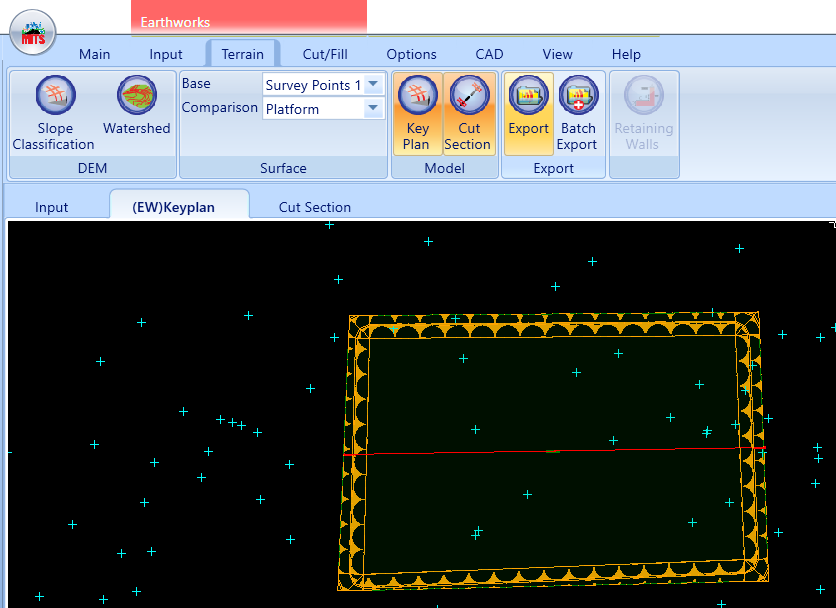

6. In the case where SLOPE OUT is applied, you are required to generate the slope first.

Slope is generated outside of the platform

7. Since Reorder Slope can only be applied to Slope In, therefore you are required to create a platform following the shape of the slope

A new platform is created

8. Software is limited to overlapping platforms, therefore the original platform needs to be deleted, leaving only the new platform. The SLOPE IN is assigned to the new platform and the slope is generated.

Slope Direction is Assigned In
The slope is generated.

9. To reorder the slope, Steps 2 – 5 are repeated.
