Minimum Radius Standards #

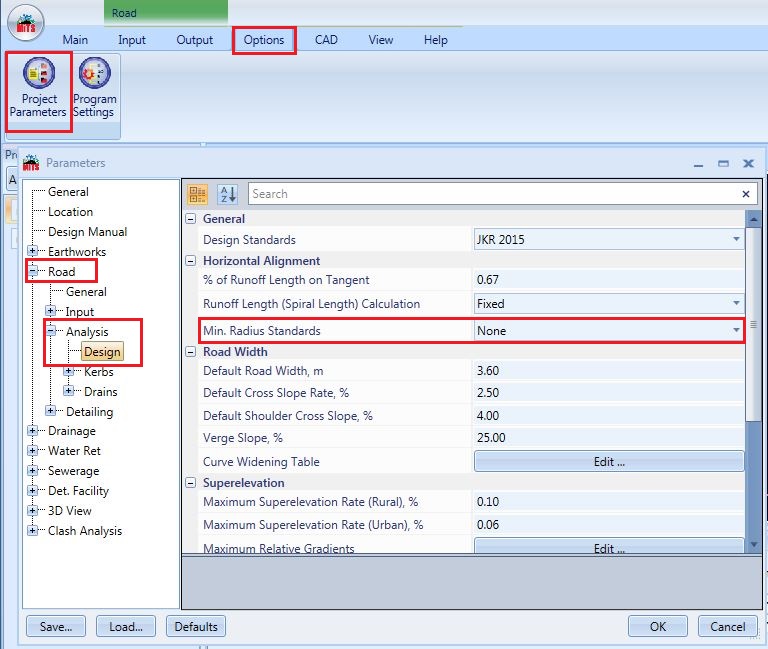

Design radius generated is based on JKR spec according to the design speed. However, if users need to insert their own value of radius, click Options > Project Parameters > Road > Analysis > Design > Horizontal Alignment > Min. Radius Standards (None) > Click OK
Users now can define their own radius and insert the value in the Horizontal Design Radius Spread Input.
Set Verge Slopes Towards The Carriageway #
The verge can be modeled as sloping towards the driveway.Go to Options > Project Parameters > Road > Design > Adjust Verge Slope (%)
![](https://i0.wp.com/mes100.com/wp-content/uploads/2022/09/Untitled-24.png?resize=746%2C497&ssl=1)
The detailed explanation can be referred to in the MES website. Click the link here.
Title Block Settings #
Number of Layouts Viewport in a Title Block in Cross Sections #

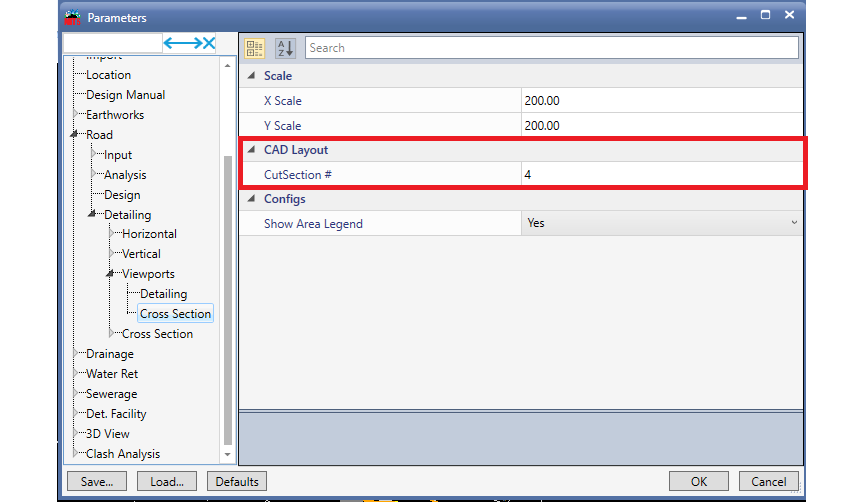

“Options > Project Parameters > Road > Detailing > Viewports > Cross Sections > CAD Layout > CutSection #”
![](https://i0.wp.com/mes100.com/wp-content/uploads/2022/09/Untitled-25.png?resize=862%2C502&ssl=1)

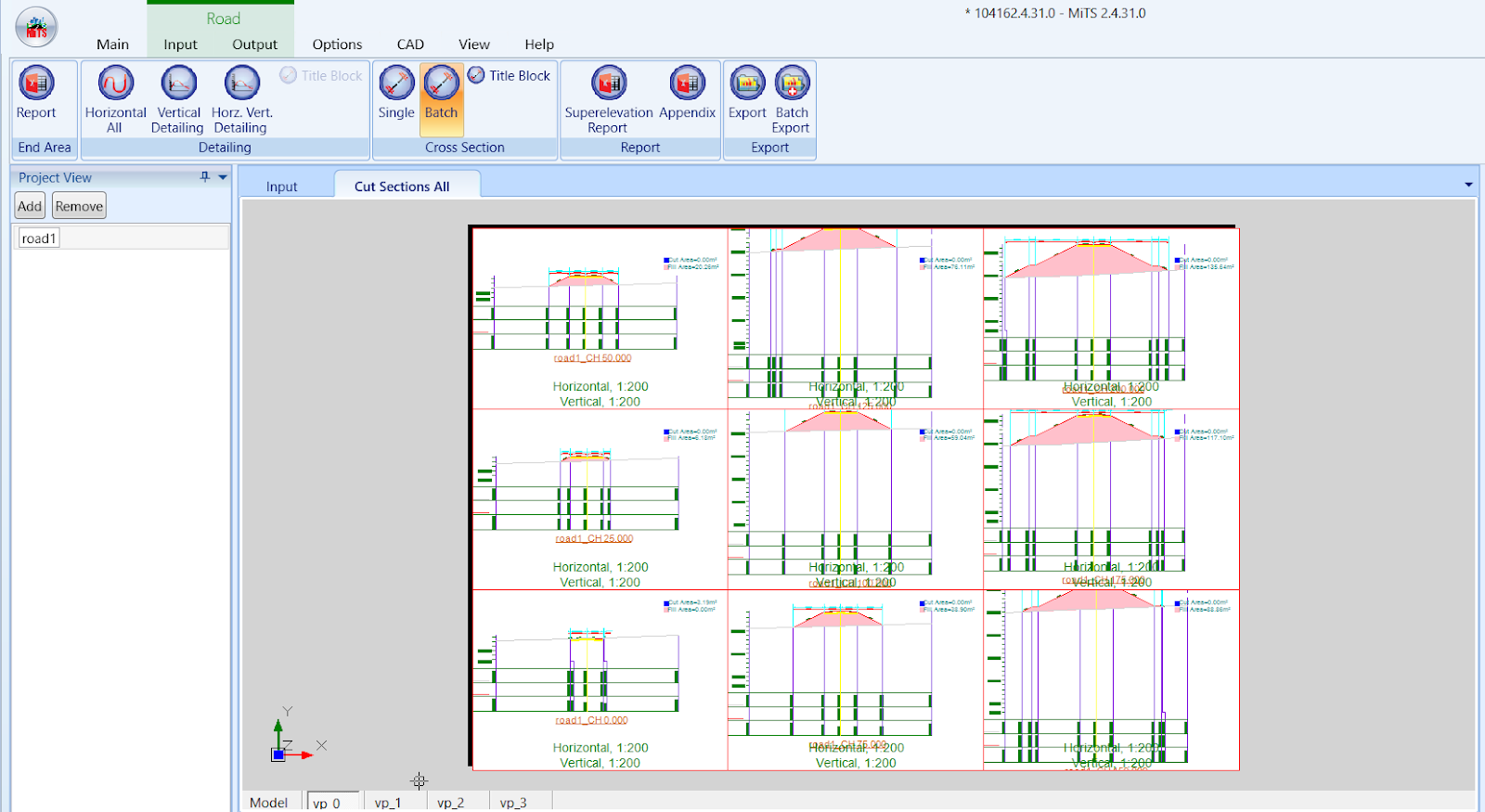

Therefore there will be nine layout viewports in a layout.
Layout Scale in Cross Sections for Existing Road #

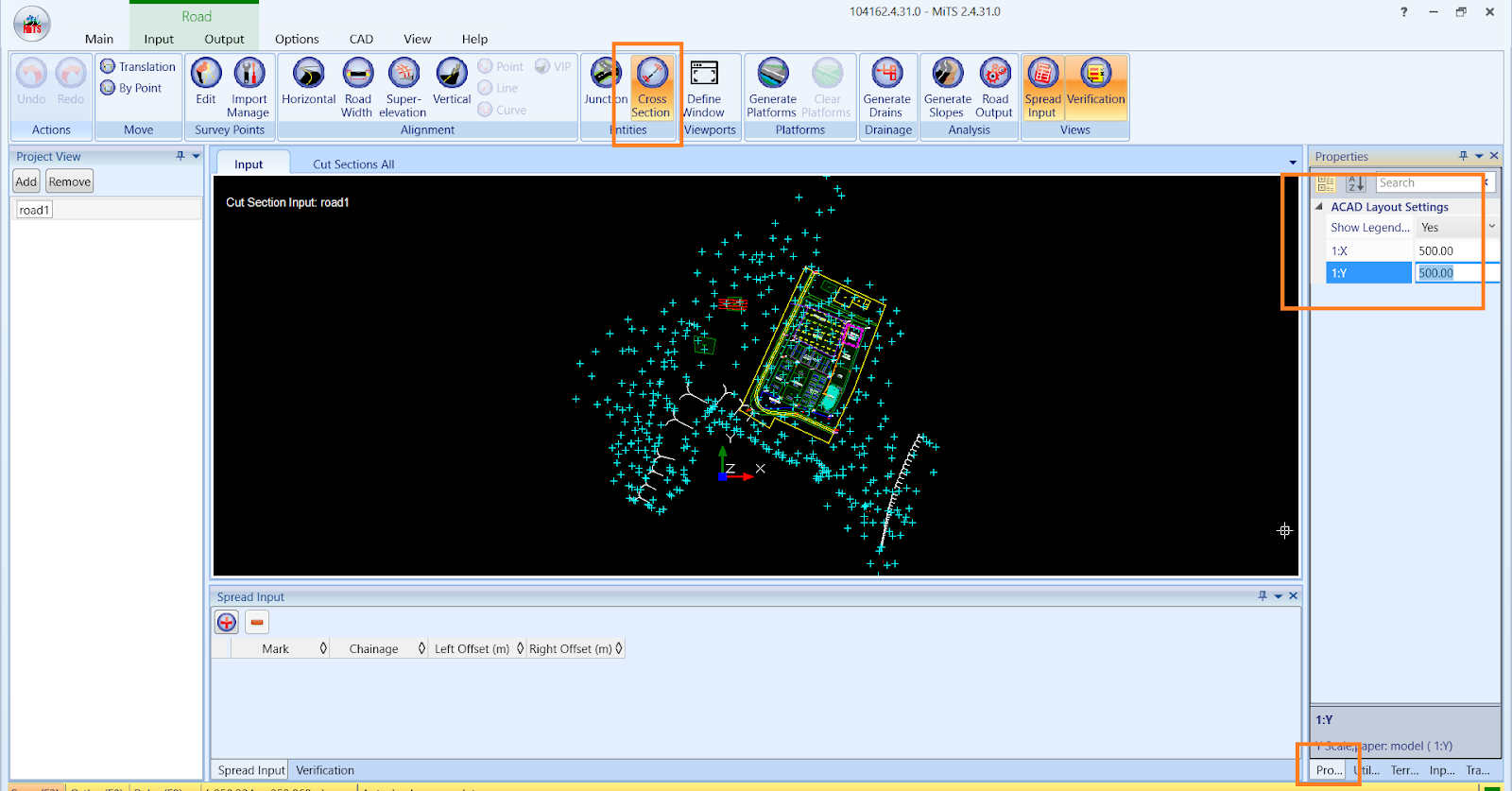

“Cross Sections > RHS Properties Tab > 1:X and 1:Y scale”
Layout Scale in Cross Sections for New Road #
“Options > Project Parameters > Road > Detailing > Viewports > Cross Section > Scale > Click OK”
![](https://i0.wp.com/mes100.com/wp-content/uploads/2022/09/Untitled-26.png?resize=862%2C502&ssl=1)
Layout Scale in Horizontal and Vertical Detailings for Existing Road #
“Define Window Viewports tab > Spread Input”
Layout Scale in Horizontal and Vertical Detailings for New Road #

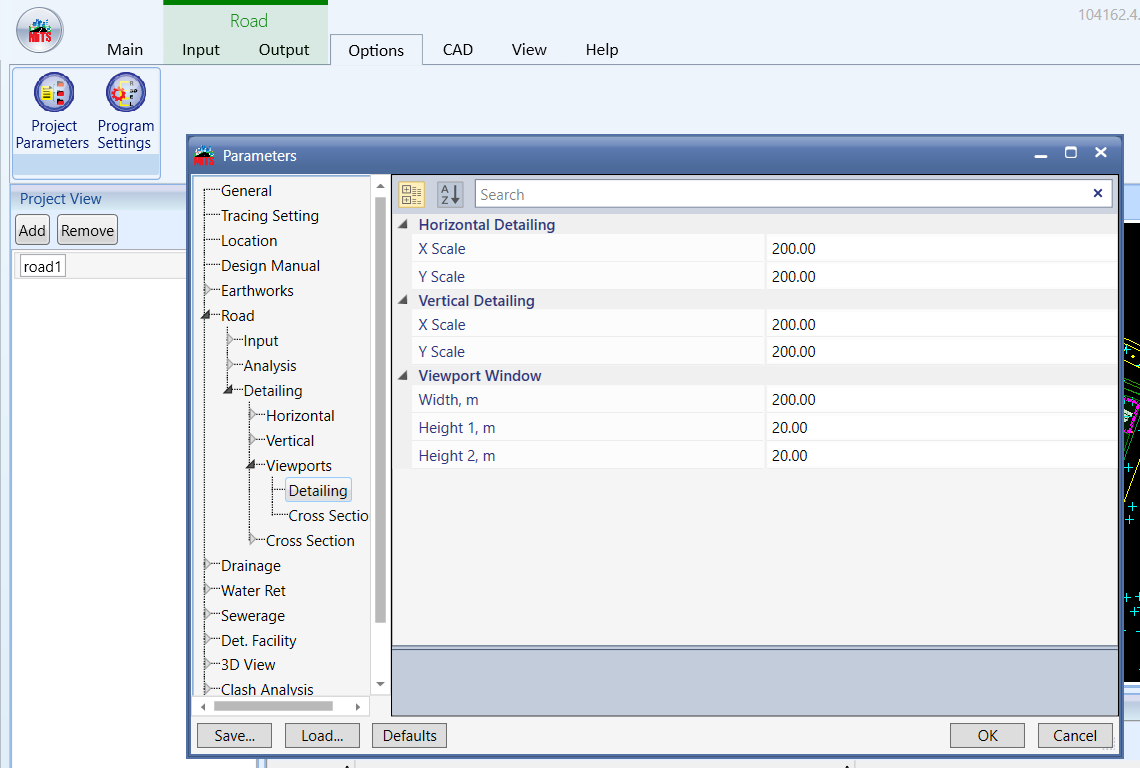

“Options > Project Parameters > Road > Detailing > Viewports > Detailing”
