In MiTS, users are able to move entities by translation and by point.
Translation Move #

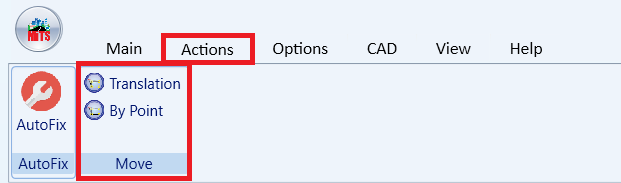

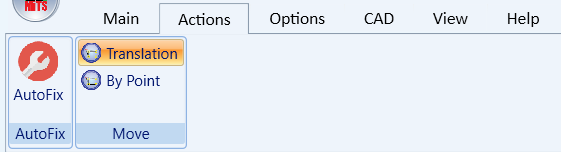

- Go to Actions tab > click Translation

- Click on the input screen until “Move Entities Selection” tab pops up. At the tab, you may select the module needed to be moved. If you want to move certain entities of the module, you may expand the module and tick on the small box. Then, click “OK”.

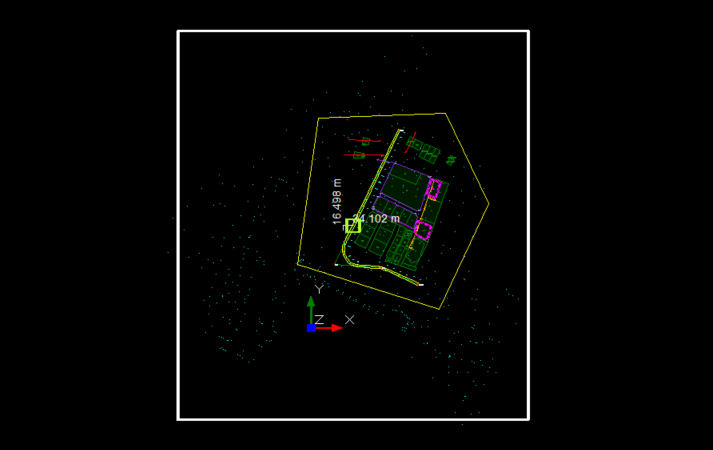

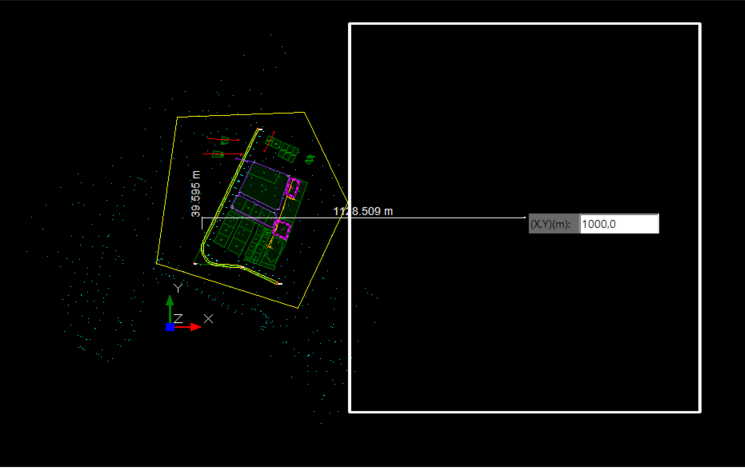

- A bounding box with center base point will appear and move according to your cursor. Then, you may click on the input screen when the new location is set or input the offset X and Y coordinate and press Enter.

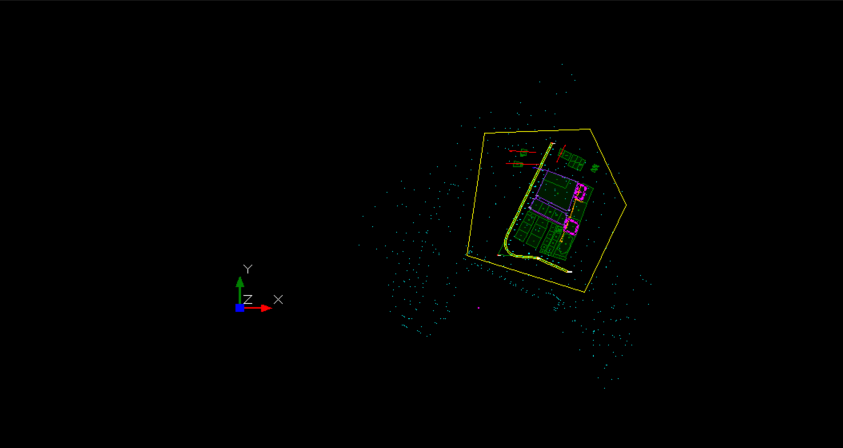

- After moving the entities, the result will appear as shown.

By Point Move #

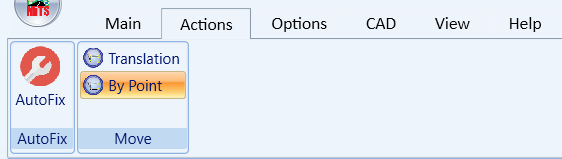

- Go to Actions tab > click By Point

- Click on the input screen until “Move Entities Selection” tab pops up. At the tab, you may select the module needed to be moved. If you want to move certain entities of the module, you may expand the module and tick on the small box. Then, click “OK”.

- Click on the base point or input the coordinate of the base point and press Enter.

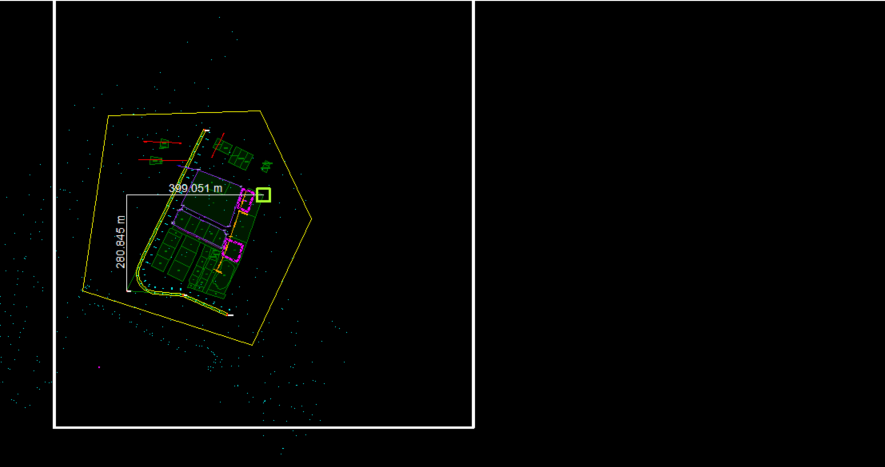

- A bounding box from the base point will appear and move according to your cursor. Then, you may click on the input screen when the point destination is set or input the new X and Y coordinate and press Enter.

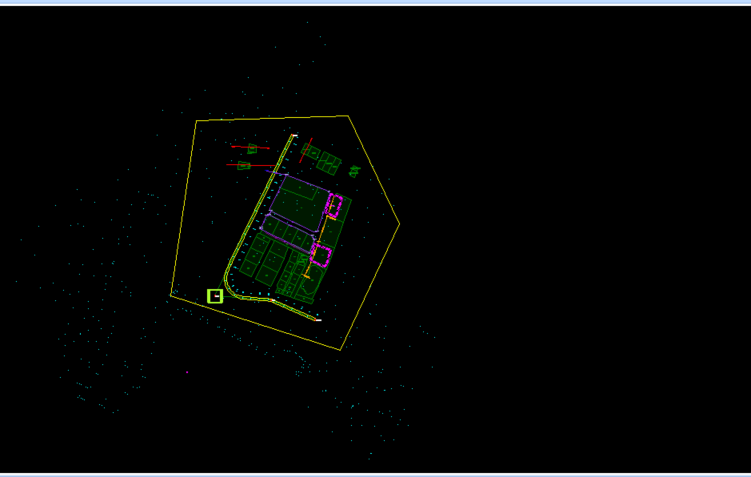

- After moving the entities, the result will appear as shown.
