In MiTS 2.1, we implement a new feature that a lot of road consultants will find to be useful– drains that appear only the CUT side of the road, but not on the FILL side. This is as per JKR requirement for road design (Arahan Teknik 6/85 Guidelines for Presentation of Engineering Drawing, page 18).

The Steps:

  1. Add Cutside Drain. Click on “Road Width > Spread Input > Click the plus button and choose cut side drain”.
  2. Change the dimension of the Cutside Drain. Click on the three-dots to change the dimension of the cutside drain and insert the dimension value in the editor box.
  3. And you are done!



The Cross Section output

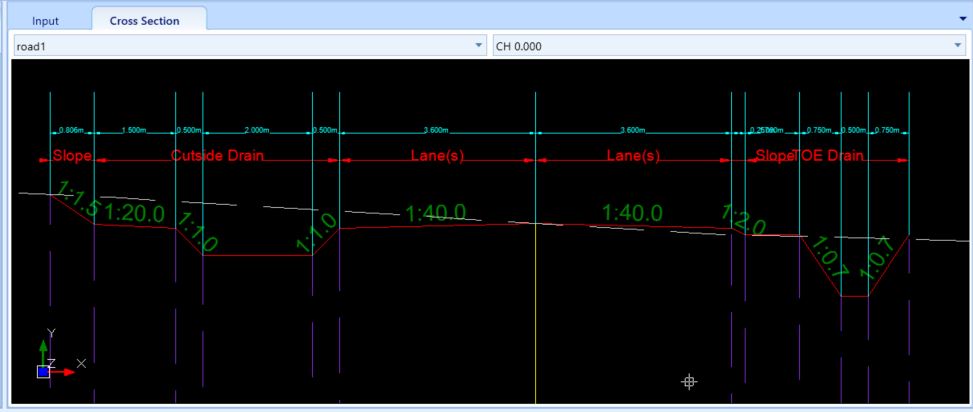

The output will be reflected instantaneously on the Cross Section, as below:

Notice that the drains only occur on the cutside, but not on the fill side

All the cross section, cut and fill volume report will be reflecting this configuration. Our cut and fill volume are always reflecting what you can see on the cross section!

The complete project can be downloaded from here
